Wibrating Screen_Vibration Screening Machine

Vibrating Screen
Sifting and sorting that matches material and objective

ANJINTECH’s twist screen is perfect for high-efficiency material sieving. This is a universal vibration machine that can be applied to a wide range of powders, including dry, wet or hot, as well as for many different industrial processes.

Application

Powder
Food industry
Ceramic industry
Chemical
Pulp and paper
Sand gravel
Sugar and syrup
Feeds for fishes
Breaker industry
Pharmacy
Metal industry using powder or a small particle

Product Number	ANJIN Auto Sieve TS-K80d08 System
Product Name	ANJIN Sieve TS-K80d08 M/C/ ABTS series- Auto Sieving System
Color	sts
Type	dry & wet 8-stage 9-kinds sieving type / the only one in Korea with more than 5 stages, the only one in the world with more than 8 stages

MODEL ABSED Series[Available in different sizes]

Vibrator	0.75/2.2KW* 4/6P/Vertical type
Vibrating amplitude	3-5mm
Power	(any voltage)V~
Decks	Min1deck/Max.8decks
Type	Dry&wet
Application	Powder,ceramic industry,chemical,pulp and paper etc.

Timer installed , and speed controlled by the inverter(The cleaning systems are available at an option)

ANJINTECH M/C CO,.: TWIST-SCREEN ABTS MODEL

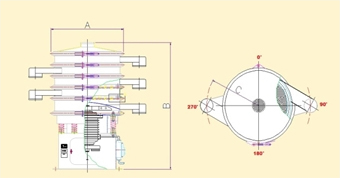

ANJIN TWIST-SCREEN STANDARD DIMENSION; This powder equipment is mostly used in the pharmaceutical, food and chemical industries. Its functioning principle is as follows. The powder material is fed into the Inlet through the Hopper and the Feeder, the desired content is achieved, and then the vibration power is used to sieve the material by grain size.
The equipment allows function automation. ANJINTECH has earned a prominent position in the field of powder handling equipment. Thanks to constant technology development, it is able to meet the expectations of its customers.

Product Highlights

Features

Fast and easy sieving, superior to the equipment of the competitors. ANJINTECH’s very own patented technology.

ANJINTECH uses its years of research and development, as well as the knowledge from the ground and diverse experience to manufacture its own high-efficiency sieving systems

Auto-sieving system - used for high precision sieving
System optimized for sieving various materials
ANJINTECH’s very own patented technology
Automatic feeding and sieving of materials
Easy to use functions
Easy and comfortable adjustment of quantity
Free control using timer
Semi-permanent use without failure
Affordable equipment with perfect results
Easy adjustment of the vibration flow, intensity and speed
The only equipment in Korea providing 8 stages and 9 types of sieving

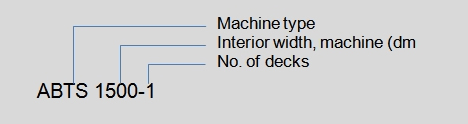

Type	TROUGH SIZE	Length	Height
ABTS450-1 ABTS450-2	455 455	830 830	890 980
ABTS500-1 ABTS500-2 ABTS500-3 ABTS500-4	500	830 830	790 883 970 1060
ABTS600-1 ABTS600-2 ABTS600-3 ABTS600-4	600	R450	785 875 965 1058
ABTS800-1 ABTS800-2 ABTS800-3 ABTS800-4	800	R540	790 880 970 1060
ABTS1000-1 ABTS1000-2 ABTS1000-3 ABTS1000-4	1000	R650	945 1050 1155 1260
ABTS1200-1 ABTS1200-2 ABTS1200-3 ABTS1200-4	1200	R740	950 1055 1160 1265
ABTS1500-1 ABTS1500-2 ABTS1500-3 ABTS1500-4	1500	R850	950 1055 1160 1265

Large capacity
High screening efficiency
Compact and lightweight
Low power requirement
Robust and operationally reliable construction
Wide range of accessories
Maintenance-friendly
Anjin design
Simple operation
