V Blender_Blender[Mixer]
V Blender_Blender[Mixer]
Perfectly suit for the powders having less mixing ratio, particle size and bulk density
This equipment is to mix some powder materials by means of three dimensional impact/fold-in movement created by rotating V-shape vessel. This is most applicable for the powders having good flow ability and can mix the powders in short time.For agglomerated powders,wet powders and/or small additives to be mixed, the model VF type is applicable which has agitating bar rotating at high speed inside of the vessel to increase mixing efficiency by means of shearing force.
Product Description
  • Unlike the existing blenders that operate only in a horizontal position, the V-type blender operates in 3 dimensions thanks to the revolving CHAMBER that repeatedly condenses and disperses the matter.
  • Depending on the properties of the blended matter, impellers can be installed inside for an improved effect.
  • This machine is used to uniformly mix two or more powders with different properties (POWDER).
Product Name: V-Type Blender 200 kg
Product Code JIS – V200
Overall Dimensions 2500 X 1400 X 1900
Weight ~ 700Kg
Main Motor 3P X 7.5HP geared motor
Internal impeller motor 3P X 2HP
Capacity 200L
Option 1 inverter
Option 2 internal impeller shape
V Blender_Blender[Mixer]

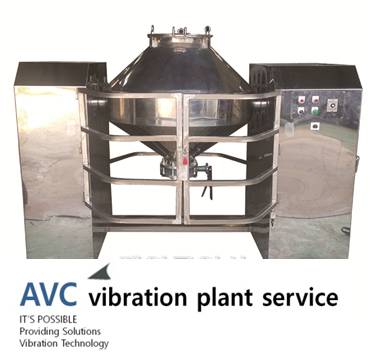

Double Cone Blender
High mixing efficiency and easy charging/discharging
This equipment is to mix some powder materials by means of gravity and centrifugal force created by rotating Double Cone shape vessel. Mixing time will be a bit longer, but mixing efficiency will be much better.Increase of mixing efficiency and charge volume as well as prevention of bridging problem at discharge can be obtained by providing angle adjustable baffle plate at inside.
Product Description
  • Used to uniformly mix two or more dried powders with different properties.
  • Depending on the properties of the blended matter, impellers can be installed inside to improve the effect.
  • Impellers are used to blend evenly substances with low liquidity.
  • Manufactured with precision to ensure even blending.
  • The container and inner impellers are made of stainless steel ensuring that the body remains clean and corrosion-free.
  • Front and back protective frames ensure safety
  • The front protective frame is fitted with a safety device (limit switch) to ensure maximum safety
Product Name: Double Cone Mixer
Product Code
Overall Dimensions Right and Left2000XBack and Forth1800X weight1850
Weight 500KG
Main Motor 3P X 5HP
Impeller motor 3P X 1HP
Capacity 400L
Mixing Speed Cone type 26 R.P.M, impeller 80 R.P.M
