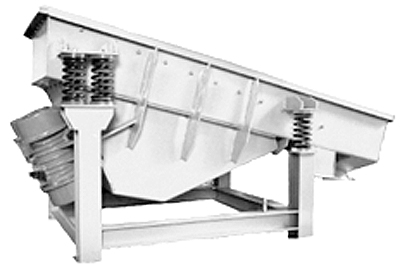

Vibrating Screen

Vibrating Screen

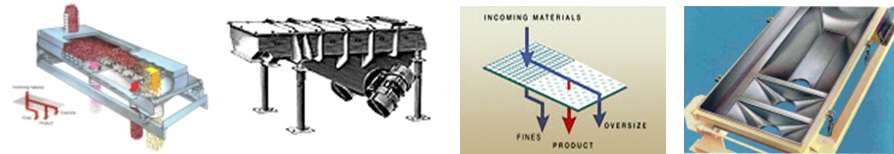

Sifting and sorting that matches material and objective

Allows the product to be sieved and transferred simultaneously. For easier maintenance, the structure can be made simplified by implementing a high-performance vibrator. The vibration power can be easily increased or reduced by adjusting the angle of the vibrator's unbalanced weight. The equipment can be adapted depending on the process design which ensures a wide area of application. It can also be made more economical by simplifying the structure. Stages 1 through 5 can be designed and produced.

Product Highlights Features

Easy, fast sieving with better results than those offered by competing products. ANJINTECH's very own patented technology!
Easily adjustable flow and intensity of vibration.

ANJIN ROTARY VIBRATOR, a high efficiency source of vibration provides simple maintenance and easy amplitude adjustment.
The area and the rectangular shape of the SCREEN UNIT maximize the efficiency of distribution.
An ANTI-CLOGGING DEVICE is mounted to reduce mesh clogging and ensure continuous distribution.
The net forms a slope with an angle of 8° to 13° or 13° to 18°, which is ideal for perfect speed control of the distributed matter flow.

MODEL ABSED Series[Available in different sizes]

Vibrator	0.75/2.2KW* 4/6P/Vertical type
Vibrating amplitude	0.4mm
Power	0.2~0.4Kw2/0.85~1.5Kw2/1.5~2.2Kw2/3.75~7.5Kw2
Decks	Max.4decks
Type	Forced vibration type by Rotary vibrator, Dry&wet

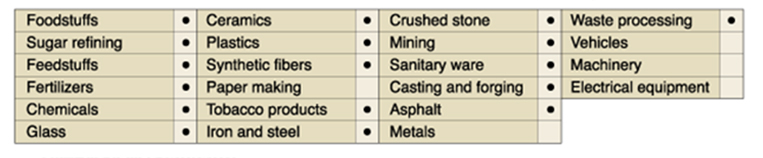

Application	Powder,ceramic industry,foodstuffs,electrical equipment,chemical,pulp and paper etc.

Timer installed , and speed controlled by the inverter (The cleaning systems are available at an option)

VIBRATORY SCREENS

DIMEN SION(Standard)

MODEL	TROUGH SIZE	VIBRATOR
ABS-45-1.2	0.4/450 X 1200	0.2-0.4kw x 2
ABS-45-1.5	0.5/450 X 1500	0.2-0.4kw x 2
ABS-60-1.8	0.9/600 X 1800	0.85-1.5kw x 2
ABS-90-1.8	1.4/900 X 1800	0.85-1.5kw x 2
ABS-90-2.4	1.8/900 X 2400	1.5-2.2kw x 2
ABS-12-2.4	2.5/1200 X 2400	1.5-2.2kw x 2
ABS-12-3.6	3.8/1200 X 3600	3.75-7.5kw x 2
ABS-15-3.6	4.5/1500 X 3600
ABS-18-4.	6.0/1800 X 4200

Various Screen types are available. Since first one needs to identify the characteristics of the raw materials and the conditions of the site, then calculate the cross-section area of the screen and only after that choose the model type, it is problematic to write down all Screen models.
