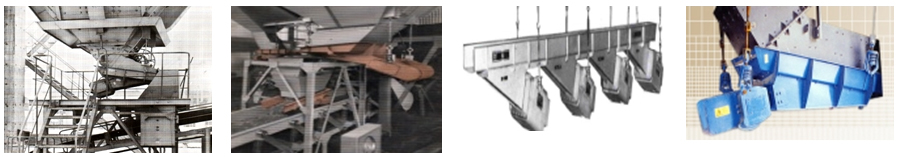

ABMF Series Vibrating

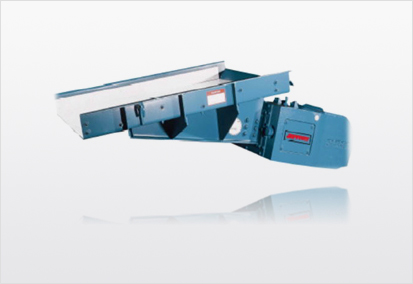

ABMF Series vibrating feeder of electronic resonance type.
(Greater capacity for increased productivity)
(Greater capacity for increased productivity)
Outstanding durability ensures long service life without failures.
Covered structure is available to improve the working environment and prevent contamination by foreign matter. Easy feed rate control ensures process design responsiveness. Standardized models make LAYOUT design easy. Supports multiple processes while transferring, including cooling, drying, temperature preservation. Ensures efficient transfer of any material small/large, heated, adhesive, etc.
Covered structure is available to improve the working environment and prevent contamination by foreign matter. Easy feed rate control ensures process design responsiveness. Standardized models make LAYOUT design easy. Supports multiple processes while transferring, including cooling, drying, temperature preservation. Ensures efficient transfer of any material small/large, heated, adhesive, etc.
- Application
-
- Separator in various particles by each shape
- Conveyor
- Supply in fixed quantity for packer scale
- Regular orderliness feeder
- Feeding machine by two(2)steps for packer
- Hopper batching system
- Inlet, feeding, outlet for a small amount of powder
- Automatic control of feeding rate easily arranged
- The automatic control of the feed rate can be easily implemented.
A perfect choice to ensure a constant feed and transfer of any product anywhere.
Easy feed rate control ensures process design responsiveness.
Feeder feed rate can be easily adjusted using the controller during operation.
- Wide range of material can be handle
- Can be used for a wide range of materials.
Ensures efficient transfer of any material small/large, heated, adhesive, etc.
Effectively transports substances of all types from fine powders to materials consisting of large chunks.
It is also excellent for transferring high-temperature or high-abrasive products and rough materials.
- Various types available matched to specialized manufacturing Operations
- Various effects are available for specialized manufacturing processes.
Supports multiple processes while transferring, including cooling, drying, temperature preservation.
Airtight structure is well suited for handling powder materials.
The equipment is also good for drying substances containing a lot of moisture, or cooling highly heated materials.
Waterproof, heat dissipating, acid resistant or alkali resistant types can also be manufactured per customer's request.
- Automatic control of feeding rate easily arranged
- Easy maintenance and maximum efficiency at an affordable price.
Simple structure ensures easy maintenance. Outstanding durability guarantees long service life without failure.
The use of magnetic force allows to minimize power consumption and ensure economical operation.
All repairs and replacements are easy due to the simple structure.
The use of the vibration effect allows to avoid the change of wave form or variation of the material. Sturdy structure ensures semi-permanent lifetime.

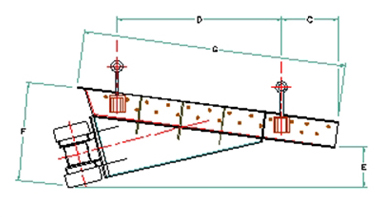

HANGER TYPE
SUPPORT TYPE
MODEL CAP(T/hr) L×W VIVRATOR(kw×2) WEIGHT(kg) DIMENSION C D E F G ABF-35-1.2 10 1200×350 0.4kw×4p 185 196 966 400 550 1200 ABF-35-3.0 10 3000×350 317 196 966 500 600 3000 ABF-50-1.2 20 1200×500 0.85kw×4p 250 216 991 451 600 1200 ABF-45-4.0 25 4000×450 1480 262 1091 600 750 4000 ABF-60-1.8 40 1800×600 1.5kw×6p 960 262 1091 600 750 1500 ABF-95-1.8 120 1800×950 880 351 1291 750 960 1800 ABF-150-2.0 700 2000×1500 3kw×8p 1720 400 1400 600 900 2000
