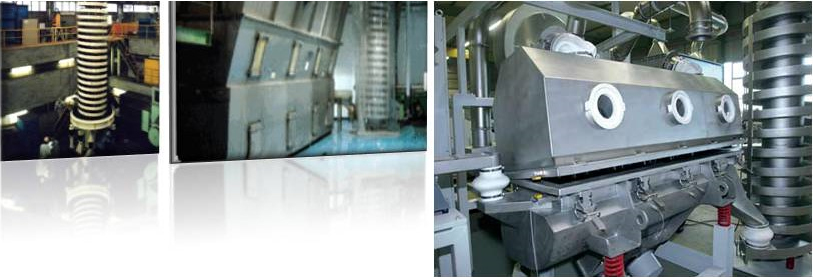

Vibratory drying and cooling equipment comprises a vibratory conveyor, cooling source, fan, and dust removal and extraction equipment
Features
  • Energy consumption can be improved by minimizing the use of the drying heat source.
  • The helical arrangement of the heat transfer plate allows for a 6 times greater capacity which saves space.
  • Stirring, transfer of heat and dried matter occur simultaneously in the same space.
Examples of Application Areas
FOODS/FERMENTATION/PHARMACY/METALS/CERAMICS/ MINERALS/AGRICULTURAL/FISHERIES/LIVESTOCKPRODUCTS FEEDS/FIGMENTSPETROCHEMICAL PRODUCTS/ SOLID WASTES OTHER ALL KIND OF POWDER PARTICLES.
Technical Characteristics
MODEL ABSED Series[Available in different sizes]
Vibrator Rotary vibrator type
Vibrating amplitude 0~5mm
Power 0.4/0.75/1.5/2.2/3.7/5.5/7.5kw  * 2motor
Height 1.5m~
Type Forced vibration type by rotary vibrator,Dry&wet
Application Powder,ceramics,industry,chemical,pulp and paper etc.
Vibration Dryer_Dryer

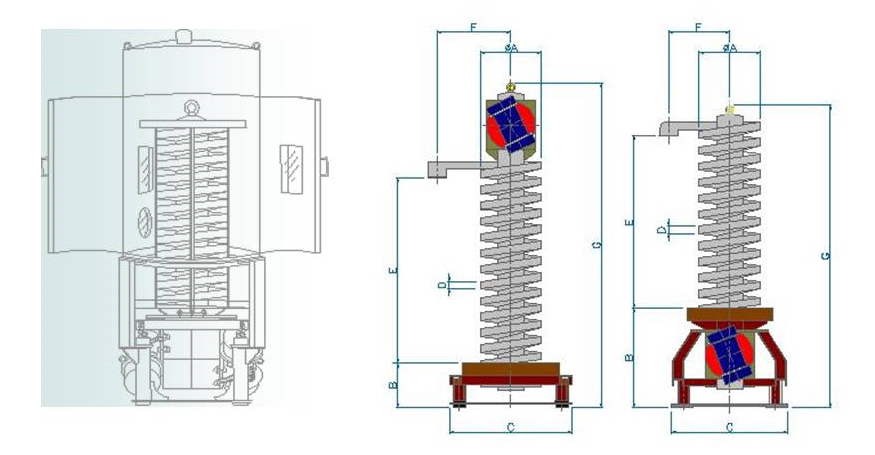

MODEL CAPA(T/H) TAKE UP HEIHT(M) WEIGHT(Kg) VIBRATOR(Kw×2) POLE DIMENSION
A B C D E F G
ABSE-2 2.5 1.8 300 0.4×2 4 550 610 600 50 1800 750 2400
ABSE-3 4 2.5 650 0.75×2 6 715 880 900 80 2500 900 3380
ABSE-4.5 5 3.8 1000 1.5×2 8 858 900 1100 100 3800 1000 4700
ABSE-6 6 5.2 1500 2.2×2 8 940 1000 1300 120 5200 1100 6200
ABSE-7 8 6.3 2000 3.7×2 8 1100 1350 1500 150 6300 1300 7650
ABSE-8 10 7 3000 5.5×2 8 1320 1400 1700 170 7000 1520 8400
ABSE-10 12 9.2 4000 7.5×2 8 1650 1450 1800 180 9200 1850 10650
ABSE-5.6 20 4.8 800 5.5×2 8 2200 1800 2500 220 4800 2350 4150
